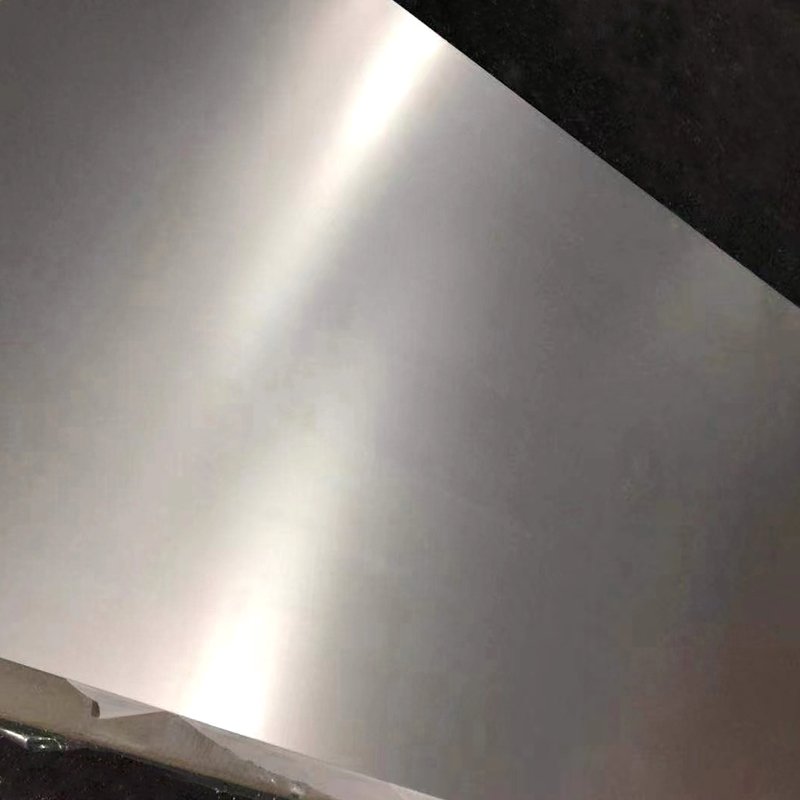

1100 Aluminum Plate/Sheet

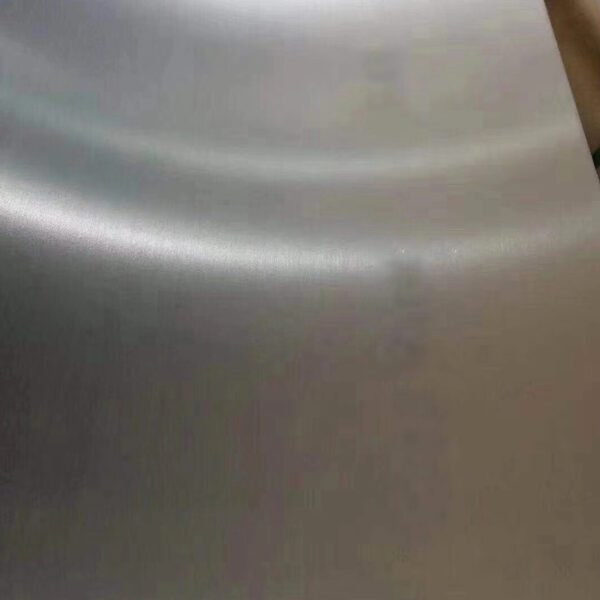

1100 Aluminum Plate/Sheet - Image 2

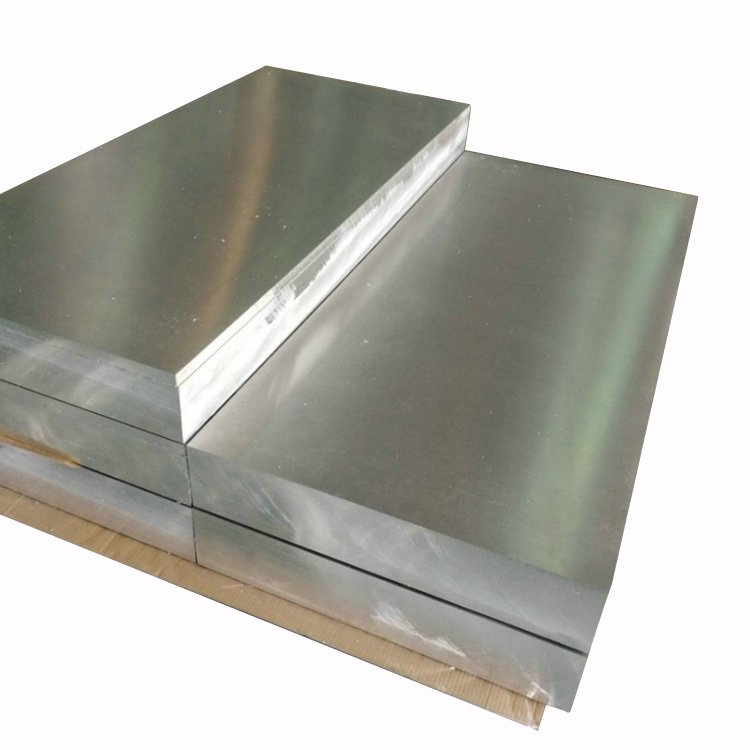

1100 Aluminum Plate/Sheet - Image 3
1100 Aluminum Plate/Sheet - Image 4

1100 Aluminum Plate/Sheet

1100 aluminum plate belongs to the pure aluminum plate series with relatively low strength. It has excellent ductility, formability, weldability and corrosion resistance. The corrosion resistance can be further improved and a beautiful surface can be obtained after anodization. But it cannot be strengthened by heat treatment.

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
Categories: , ,

1100 Aluminum Plate/Sheet

Name 1100 Aluminum Plate/Sheet
Standard JIS G3141,DIN1623,EN10130
Material 1050,1060,3003, 3A21,5052.5005.5083.5A05,6061.etc
Sheet 0.15 mm- 2.0mm
Normal sheet 2.0mm-6.0mm
Medium plate 6.0 mmt-25.0mm
Plate 25mm-200mm Super thick plate more than 200mm
Packing Export standard packing or according to customers’ requirement
Certificate ISO9001:2008,SGS



Chemical Composition

Alloy %Si %Mg %Mn %Cu %Fe %Cr %Zn %Ti %Others %Al
EN AW-1050 A 0.25Max 0.05Max 0.05Max 0.05Max 0.40Max – 0.07Max 0.05Max – 99.5 Min
EN AW-1070 A 0.20Max 0.03Max 0.03Max 0.03Max 0.25Max – 0.07Max 0.03Max – 99.7 Min
EN AW-1100 Si+Fe 0.95 Max – 0.05 Max 0.05 – 0.20 – – 0.10 Max 0.05 Max – 99.0 Min
EN AW-2011 0.40 Max – – 5.00 – 6.00 0.70 Max – 0.30 Max – Bi : 0.20 – 0.60Pb : 0.20 – 0.60 Remainder
EN AW-2014 0.50 – 1.20 0.20 – 0.80 0.40 – 1.20 3.90 – 5.00 0.70 Max 0.10 Max 0.25 Max 0.15 Max – Remainder
EN AW-2024 0.50 Max 1.20 -1.80 0.30 – 0.90 3.80 – 4.90 0.50 Max 0.10 Max 0.25 Max 0.15 Max 0.15 Max Remainder
EN AW-3003 0.60 Max – 1.00 – 1.50 0.05 – 0.20 0.70 Max – 0.10 Max – 0.15 Max Remainder
EN AW-3103 0.50 Max 0.30 Max 0.90 – 1.50 0.10 Max 0.70 Max 0.10 Max 0.20 Max 0.10 Max – Remainder
EN AW-6101A 0.30 – 0.7 0.40 – 0.90 0.03 Max 0.05 Max 0.40 Max – – – 0.10 Max Remainder
EN AW-6005 0.60 – 0.90 0.40 – 0.60 0.10 Max 0.10 Max 0.35 Max 0.10 Max 0.10 Max 0.10 Max – Remainder
EN AW-6351 0.70 – 1.30 0.40 – 0.80 0.40 – 0.80 0.10 Max 0.50 Max – 0.20 Max 0.20 Max 0.15 Max Remainder
EN AW-6060 0.30 – 0.60 0.35 – 0.60 0.10 Max 0.10 Max 0.10 – 0.30 0.05 Max 0.15 Max 0.10 Max – Remainder
EN AW-6061 0.40 – 0.80 0.80 – 1.20 0.15 Max 0.15 – 0.40 0.70 Max 0.04 – 0.35 0.25 Max 0.15 Max – Remainder
EN AW-6063 0.20 – 0.60 0.45 – 0.90 0.10 Max 0.10 Max 0.35 Max 0.10 Max 0.10 Max 0.10 Max – Remainder
EN AW-6082 0.70 – 1.30 0.60 -1.20 0.40 – 1.00 0.10 Max 0.50 Max 0.25 Max 0.20 Max 0.10 Max – Remainder

Mechanical Properties

Alloy Temper UTS (Mpa) Yield Strength (Mpa) Elongation (%)
Minimum Maximum Minimum Maximum A 50mm (Minimum)
EN AW-1050 A F 60 – 20 – 23
O 60 95 20 – 23
EN AW-1070 A F 60 – 20 – 23
EN AW-1100 O 75 110 – – 25
EN AW-2011 T4 275 – 125 – 12
T6 310 – 230 – 6
EN AW-2014 O – 250 – 135 10
T4 370 – 230 – 11
T6 415 – 370 – 5
EN AW-2024 O – 250 – 150 10
T3,T3510,T3511 395 – 290 – 6
T8,T8510,T8511 455 – 380 – 4
EN AW-3003 F 95 – 35 – 20
O 95 135 35 – 20
EN AW-3103 F 95 – 35 – 20
O 95 135 35 – 20
EN AW-6101A T6 200 – 170 – 8
EN AW-6005 T4 180 – 90 – 13
T6 270 – 225 – 6
EN AW-6351 O – 160 – 110 12
T4 205 – 110 – 12
T6 290 – 250 – 6
EN AW-6060 T4 120 – 60 14 12
T5 160 – 120 – 6
T6 190 – 150 – 6
T64 180 – 120 – 10
T66 215 – 160 – 6
EN AW-6061 O – 150 – 110 14
T4 180 – 110 – 13
T6 260 – 240 – 6
EN AW-6063 O – 130 – – 16
T4 130 – 65 – 12
T5 175 – 130 – 6
T6 215 – 170 – 6
T66 245 – 200 – 6
EN AW-6082 O – 160 – 110 12
T4 205 – 110 – 12
T5 270 – 230 – 6
T6 290 – 250 – 6
