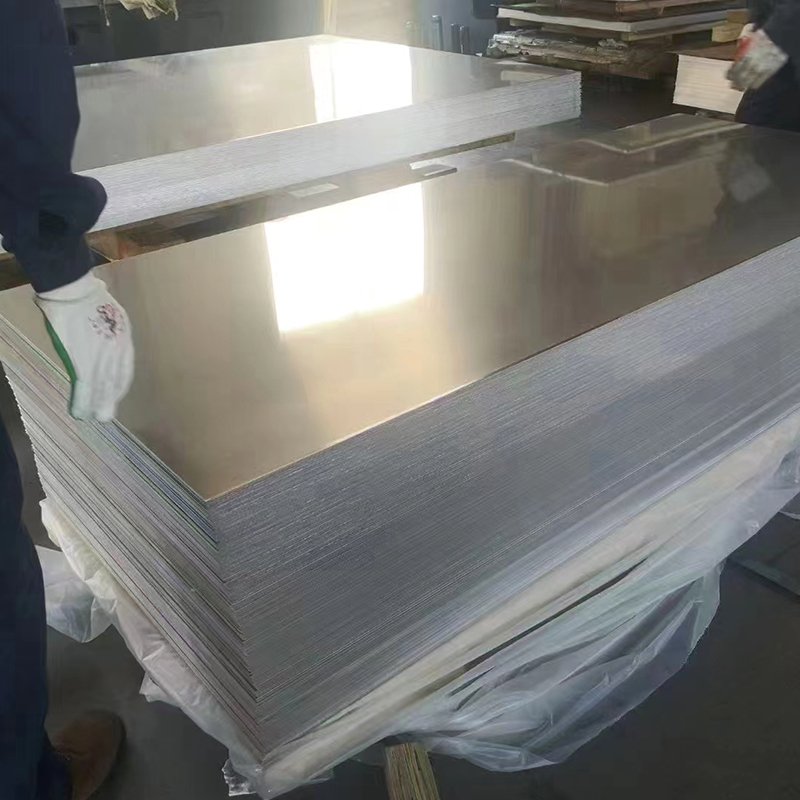

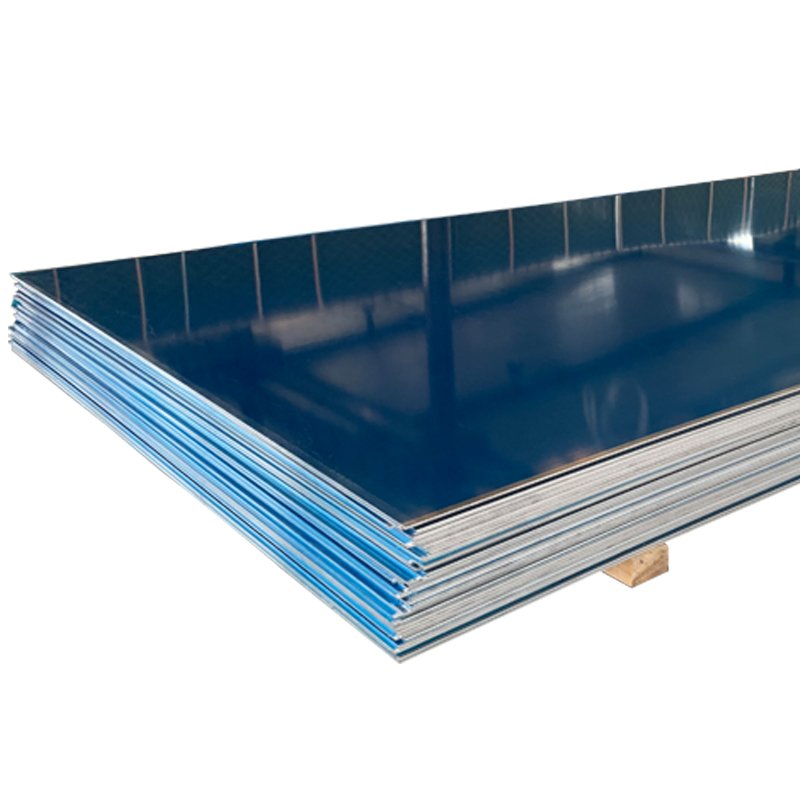

5052 Aluminum Plate/Sheet
5052 aluminum plate is a conventional rust-proof aluminum alloy plate. Due to its good mechanical properties, cutting properties, and anodizing properties, it is widely used in fields such as ships, machinery, electronic appliances, chemicals, building materials, decoration and decoration.
5052 Aluminum Plate/Sheet
Name | 5052 Aluminum Plate/Sheet |
Standard | JIS G3141,DIN1623,EN10130 |
Material | 1050,1060,3003, 3A21,5052.5005.5083.5A05,6061.etc |
Sheet | 0.15 mm- 2.0mm |
Normal sheet | 2.0mm-6.0mm |
Medium plate | 6.0 mmt-25.0mm |
Plate | 25mm-200mm Super thick plate more than 200mm |

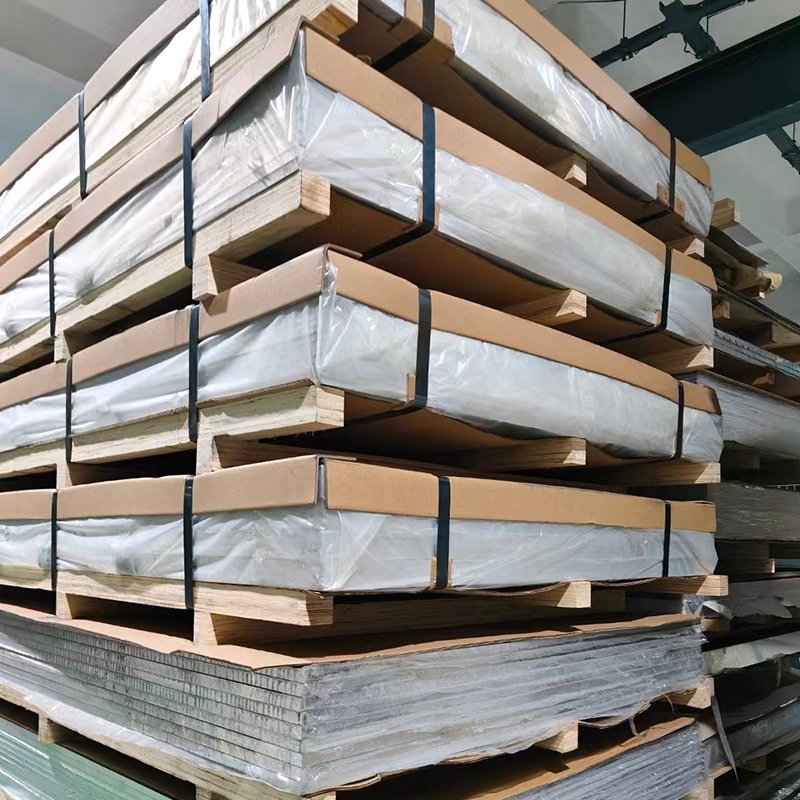

Packing | Export standard packing or according to customers’ requirement |
Certificate | ISO9001:2008,SGS |
Chemical Composition
Alloy | %Si | %Mg | %Mn | %Cu | %Fe | %Cr | %Zn | %Ti | %Others | %Al |
EN AW-1050 A | 0.25Max | 0.05Max | 0.05Max | 0.05Max | 0.40Max | – | 0.07Max | 0.05Max | – | 99.5 Min |
EN AW-1070 A | 0.20Max | 0.03Max | 0.03Max | 0.03Max | 0.25Max | – | 0.07Max | 0.03Max | – | 99.7 Min |
EN AW-1100 | Si+Fe 0.95 Max | – | 0.05 Max | 0.05 – 0.20 | – | – | 0.10 Max | 0.05 Max | – | 99.0 Min |
EN AW-2011 | 0.40 Max | – | – | 5.00 – 6.00 | 0.70 Max | – | 0.30 Max | – | Bi : 0.20 – 0.60Pb : 0.20 – 0.60 | Remainder |
EN AW-2014 | 0.50 – 1.20 | 0.20 – 0.80 | 0.40 – 1.20 | 3.90 – 5.00 | 0.70 Max | 0.10 Max | 0.25 Max | 0.15 Max | – | Remainder |
EN AW-2024 | 0.50 Max | 1.20 -1.80 | 0.30 – 0.90 | 3.80 – 4.90 | 0.50 Max | 0.10 Max | 0.25 Max | 0.15 Max | 0.15 Max | Remainder |
EN AW-3003 | 0.60 Max | – | 1.00 – 1.50 | 0.05 – 0.20 | 0.70 Max | – | 0.10 Max | – | 0.15 Max | Remainder |
EN AW-3103 | 0.50 Max | 0.30 Max | 0.90 – 1.50 | 0.10 Max | 0.70 Max | 0.10 Max | 0.20 Max | 0.10 Max | – | Remainder |
EN AW-6101A | 0.30 – 0.7 | 0.40 – 0.90 | 0.03 Max | 0.05 Max | 0.40 Max | – | – | – | 0.10 Max | Remainder |
EN AW-6005 | 0.60 – 0.90 | 0.40 – 0.60 | 0.10 Max | 0.10 Max | 0.35 Max | 0.10 Max | 0.10 Max | 0.10 Max | – | Remainder |
EN AW-6351 | 0.70 – 1.30 | 0.40 – 0.80 | 0.40 – 0.80 | 0.10 Max | 0.50 Max | – | 0.20 Max | 0.20 Max | 0.15 Max | Remainder |
EN AW-6060 | 0.30 – 0.60 | 0.35 – 0.60 | 0.10 Max | 0.10 Max | 0.10 – 0.30 | 0.05 Max | 0.15 Max | 0.10 Max | – | Remainder |
EN AW-6061 | 0.40 – 0.80 | 0.80 – 1.20 | 0.15 Max | 0.15 – 0.40 | 0.70 Max | 0.04 – 0.35 | 0.25 Max | 0.15 Max | – | Remainder |
EN AW-6063 | 0.20 – 0.60 | 0.45 – 0.90 | 0.10 Max | 0.10 Max | 0.35 Max | 0.10 Max | 0.10 Max | 0.10 Max | – | Remainder |
EN AW-6082 | 0.70 – 1.30 | 0.60 -1.20 | 0.40 – 1.00 | 0.10 Max | 0.50 Max | 0.25 Max | 0.20 Max | 0.10 Max | – | Remainder |
Mechanical Properties
Alloy | Temper | UTS (Mpa) | Yield Strength (Mpa) | Elongation (%) | ||
Minimum | Maximum | Minimum | Maximum | A 50mm (Minimum) | ||
EN AW-1050 A | F | 60 | – | 20 | – | 23 |
O | 60 | 95 | 20 | – | 23 | |
EN AW-1070 A | F | 60 | – | 20 | – | 23 |
EN AW-1100 | O | 75 | 110 | – | – | 25 |
EN AW-2011 | T4 | 275 | – | 125 | – | 12 |
T6 | 310 | – | 230 | – | 6 | |
EN AW-2014 | O | – | 250 | – | 135 | 10 |
T4 | 370 | – | 230 | – | 11 | |
T6 | 415 | – | 370 | – | 5 | |
EN AW-2024 | O | – | 250 | – | 150 | 10 |
T3,T3510,T3511 | 395 | – | 290 | – | 6 | |
T8,T8510,T8511 | 455 | – | 380 | – | 4 | |
EN AW-3003 | F | 95 | – | 35 | – | 20 |
O | 95 | 135 | 35 | – | 20 | |
EN AW-3103 | F | 95 | – | 35 | – | 20 |
O | 95 | 135 | 35 | – | 20 | |
EN AW-6101A | T6 | 200 | – | 170 | – | 8 |
EN AW-6005 | T4 | 180 | – | 90 | – | 13 |
T6 | 270 | – | 225 | – | 6 | |
EN AW-6351 | O | – | 160 | – | 110 | 12 |
T4 | 205 | – | 110 | – | 12 | |
T6 | 290 | – | 250 | – | 6 | |
EN AW-6060 | T4 | 120 | – | 60 | 14 | 12 |
T5 | 160 | – | 120 | – | 6 | |
T6 | 190 | – | 150 | – | 6 | |
T64 | 180 | – | 120 | – | 10 | |
T66 | 215 | – | 160 | – | 6 | |
EN AW-6061 | O | – | 150 | – | 110 | 14 |
T4 | 180 | – | 110 | – | 13 | |
T6 | 260 | – | 240 | – | 6 | |
EN AW-6063 | O | – | 130 | – | – | 16 |
T4 | 130 | – | 65 | – | 12 | |
T5 | 175 | – | 130 | – | 6 | |
T6 | 215 | – | 170 | – | 6 | |
T66 | 245 | – | 200 | – | 6 | |
EN AW-6082 | O | – | 160 | – | 110 | 12 |
T4 | 205 | – | 110 | – | 12 | |
T5 | 270 | – | 230 | – | 6 | |
T6 | 290 | – | 250 | – | 6 |
