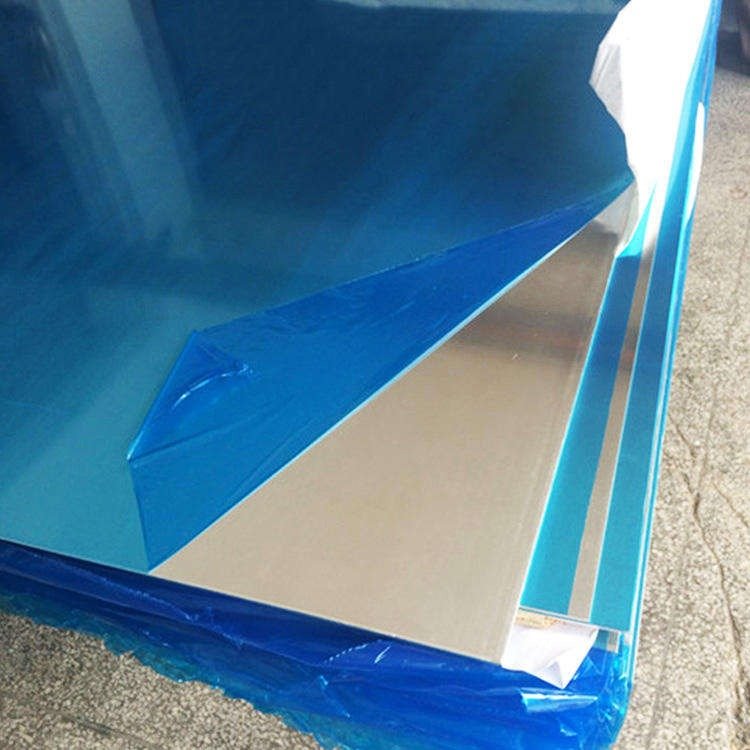

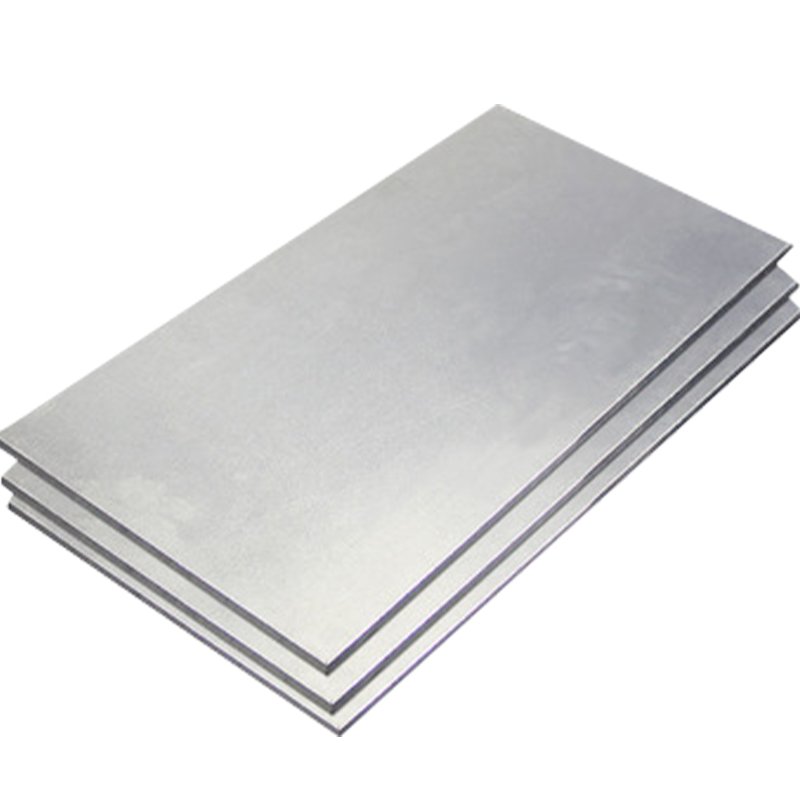

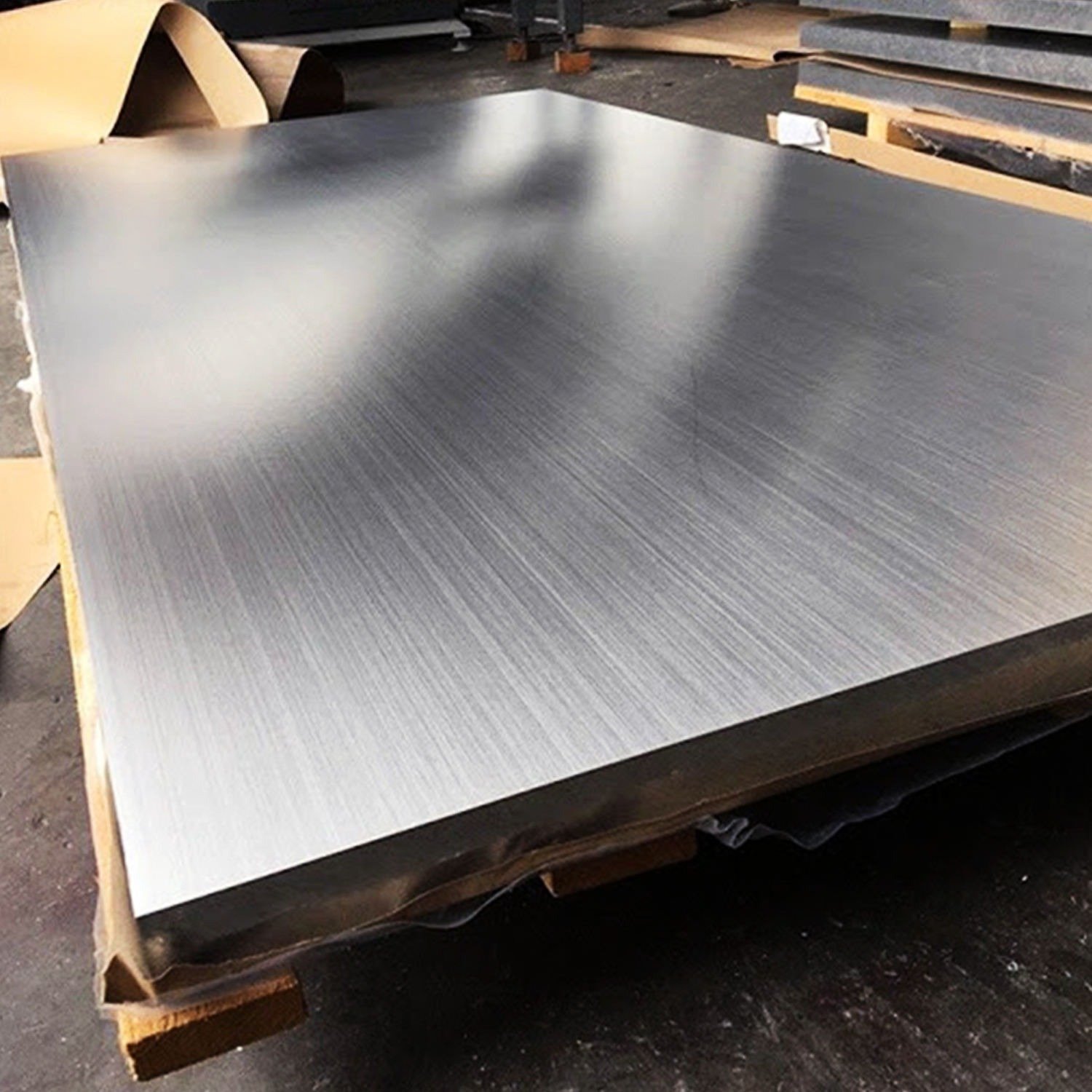

5A05 Aluminum Plate/Sheet
5A05 aluminum plate is made of an aluminum alloy material commonly used in aerospace, automotive manufacturing and structural engineering. It has good strength and corrosion resistance.
5A05 Aluminum Plate/Sheet
Name | 5A05 Aluminum Plate/Sheet |
Standard | JIS G3141,DIN1623,EN10130 |
Material | 1050,1060,3003, 3A21,5052.5005.5083.5A05,6061.etc |
Sheet | 0.15 mm- 2.0mm |
Normal sheet | 2.0mm-6.0mm |
Medium plate | 6.0 mmt-25.0mm |
Plate | 25mm-200mm Super thick plate more than 200mm |
Packing | Export standard packing or according to customers’ requirement |
Certificate | ISO9001:2008,SGS |
Chemical Composition
Alloy | %Si | %Mg | %Mn | %Cu | %Fe | %Cr | %Zn | %Ti | %Others | %Al |
EN AW-1050 A | 0.25Max | 0.05Max | 0.05Max | 0.05Max | 0.40Max | – | 0.07Max | 0.05Max | – | 99.5 Min |
EN AW-1070 A | 0.20Max | 0.03Max | 0.03Max | 0.03Max | 0.25Max | – | 0.07Max | 0.03Max | – | 99.7 Min |
EN AW-1100 | Si+Fe 0.95 Max | – | 0.05 Max | 0.05 – 0.20 | – | – | 0.10 Max | 0.05 Max | – | 99.0 Min |
EN AW-2011 | 0.40 Max | – | – | 5.00 – 6.00 | 0.70 Max | – | 0.30 Max | – | Bi : 0.20 – 0.60Pb : 0.20 – 0.60 | Remainder |
EN AW-2014 | 0.50 – 1.20 | 0.20 – 0.80 | 0.40 – 1.20 | 3.90 – 5.00 | 0.70 Max | 0.10 Max | 0.25 Max | 0.15 Max | – | Remainder |
EN AW-2024 | 0.50 Max | 1.20 -1.80 | 0.30 – 0.90 | 3.80 – 4.90 | 0.50 Max | 0.10 Max | 0.25 Max | 0.15 Max | 0.15 Max | Remainder |
EN AW-3003 | 0.60 Max | – | 1.00 – 1.50 | 0.05 – 0.20 | 0.70 Max | – | 0.10 Max | – | 0.15 Max | Remainder |
EN AW-3103 | 0.50 Max | 0.30 Max | 0.90 – 1.50 | 0.10 Max | 0.70 Max | 0.10 Max | 0.20 Max | 0.10 Max | – | Remainder |
EN AW-6101A | 0.30 – 0.7 | 0.40 – 0.90 | 0.03 Max | 0.05 Max | 0.40 Max | – | – | – | 0.10 Max | Remainder |
EN AW-6005 | 0.60 – 0.90 | 0.40 – 0.60 | 0.10 Max | 0.10 Max | 0.35 Max | 0.10 Max | 0.10 Max | 0.10 Max | – | Remainder |
EN AW-6351 | 0.70 – 1.30 | 0.40 – 0.80 | 0.40 – 0.80 | 0.10 Max | 0.50 Max | – | 0.20 Max | 0.20 Max | 0.15 Max | Remainder |
EN AW-6060 | 0.30 – 0.60 | 0.35 – 0.60 | 0.10 Max | 0.10 Max | 0.10 – 0.30 | 0.05 Max | 0.15 Max | 0.10 Max | – | Remainder |
EN AW-6061 | 0.40 – 0.80 | 0.80 – 1.20 | 0.15 Max | 0.15 – 0.40 | 0.70 Max | 0.04 – 0.35 | 0.25 Max | 0.15 Max | – | Remainder |
EN AW-6063 | 0.20 – 0.60 | 0.45 – 0.90 | 0.10 Max | 0.10 Max | 0.35 Max | 0.10 Max | 0.10 Max | 0.10 Max | – | Remainder |
EN AW-6082 | 0.70 – 1.30 | 0.60 -1.20 | 0.40 – 1.00 | 0.10 Max | 0.50 Max | 0.25 Max | 0.20 Max | 0.10 Max | – | Remainder |
Mechanical Properties
Alloy | Temper | UTS (Mpa) | Yield Strength (Mpa) | Elongation (%) | ||
Minimum | Maximum | Minimum | Maximum | A 50mm (Minimum) | ||
EN AW-1050 A | F | 60 | – | 20 | – | 23 |
O | 60 | 95 | 20 | – | 23 | |
EN AW-1070 A | F | 60 | – | 20 | – | 23 |
EN AW-1100 | O | 75 | 110 | – | – | 25 |
EN AW-2011 | T4 | 275 | – | 125 | – | 12 |
T6 | 310 | – | 230 | – | 6 | |
EN AW-2014 | O | – | 250 | – | 135 | 10 |
T4 | 370 | – | 230 | – | 11 | |
T6 | 415 | – | 370 | – | 5 | |
EN AW-2024 | O | – | 250 | – | 150 | 10 |
T3,T3510,T3511 | 395 | – | 290 | – | 6 | |
T8,T8510,T8511 | 455 | – | 380 | – | 4 | |
EN AW-3003 | F | 95 | – | 35 | – | 20 |
O | 95 | 135 | 35 | – | 20 | |
EN AW-3103 | F | 95 | – | 35 | – | 20 |
O | 95 | 135 | 35 | – | 20 | |
EN AW-6101A | T6 | 200 | – | 170 | – | 8 |
EN AW-6005 | T4 | 180 | – | 90 | – | 13 |
T6 | 270 | – | 225 | – | 6 | |
EN AW-6351 | O | – | 160 | – | 110 | 12 |
T4 | 205 | – | 110 | – | 12 | |
T6 | 290 | – | 250 | – | 6 | |
EN AW-6060 | T4 | 120 | – | 60 | 14 | 12 |
T5 | 160 | – | 120 | – | 6 | |
T6 | 190 | – | 150 | – | 6 | |
T64 | 180 | – | 120 | – | 10 | |
T66 | 215 | – | 160 | – | 6 | |
EN AW-6061 | O | – | 150 | – | 110 | 14 |
T4 | 180 | – | 110 | – | 13 | |
T6 | 260 | – | 240 | – | 6 | |
EN AW-6063 | O | – | 130 | – | – | 16 |
T4 | 130 | – | 65 | – | 12 | |
T5 | 175 | – | 130 | – | 6 | |
T6 | 215 | – | 170 | – | 6 | |
T66 | 245 | – | 200 | – | 6 | |
EN AW-6082 | O | – | 160 | – | 110 | 12 |
T4 | 205 | – | 110 | – | 12 | |
T5 | 270 | – | 230 | – | 6 | |
T6 | 290 | – | 250 | – | 6 |
