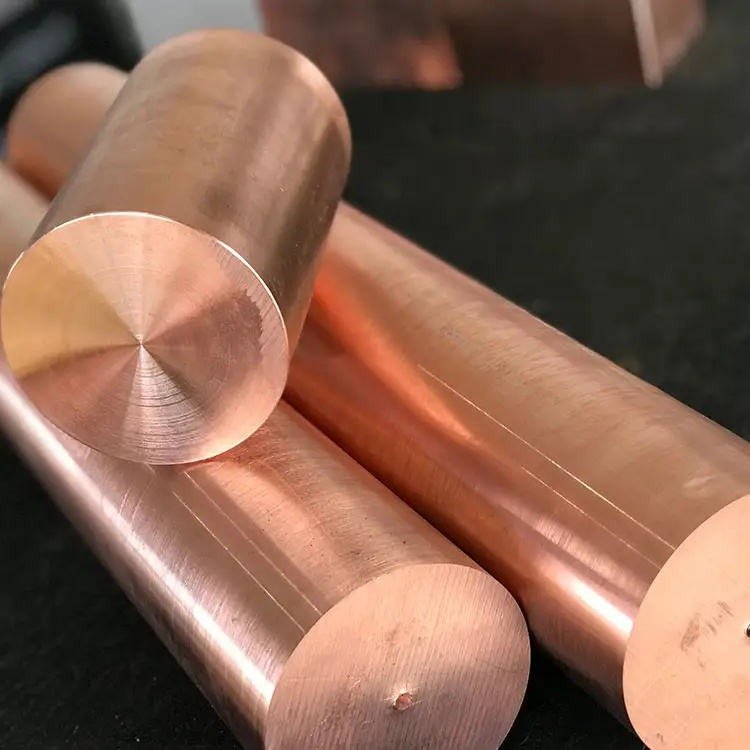

C11000/T2 Copper Bar/Rod

HengShunTai steel Co.,Ltd is a Copper Supplier. Our Copper is of high quality. Our aim is to provides with good quality steel products and better service. SGS, BV and other third party test are accepted. The product models displayed on the current page are limited, if you need specific models, please contact us.

GUARANTEED SAFE CHECKOUT

C11000/T2 Copper Bar/Rod

Product name	C11000/T2 Copper Bar/Rod
Material	C12000,C1020P,C10100,C10400,C10500,C10700,T2,C1100P,C10200,M1,Cu-ETP,TP1,C1201P,C11000,Cu-DLP,TP2,C1220P,C1221P,C12200,C12300,c14200,C23000P,H62,C2801P,C36500 Grade: C12000,C1020P,C10100,C10400,etc
Width	20mm-1250mm
Thickness	0.1mm-2mm
Length	According to customer requirements
Surface	mill,polished,bright,hair line,brush,sand blast,etc
Package	Standard export package,suit for all kinds of transport,or as required.
Application	Used in the production of electrical components, connectors, radiators

Chemical Composition

Grade			Chemical Composition(%)
	GB	JIS	Cu+Ag	P	Bi	Sb	As	Fe	Ni	Pb	Sn	S	Zn	O
Refined Copper	T1	C1020	99.95	0.001	0.001	0.002	0.002	0.005	0.002	0.003	0.002	0.005	0.005	0.02
	T2	C1100	99.9	–	0.001	0.002	0.002	0.005	–	0.005	–	0.005	–	–
	T3	C1221	99.7	–	0.002	–	–	–	–	0.01	–	—	–	–
Oxygen Free Copper	TU0	C1011	99.99	0.0003	0.0001	0.0004	0.0005	0.001	0.001	0.0005	0.0002	0.0015	0.0001	0.0005
	TU1	C1020	99.97	0.002	0.001	0.002	0.002	0.004	0.002	0.003	0.002	0.004	0.003	0.002
	TU2	C1020	99.95	0.002	0.001	0.002	0.002	0.004	0.002	0.004	0.002	0.004	0.003	0.003

Mechanical Properties

Grade (JIS)	Temper	Vickers Hardness (HV)	Tensile Strength (Mpa)	Elongation (%)
C1100C1201C1220etc.	M (Soft)	≤70	≥195	≥30
	Y4 (1/4H)	60-95	215-295	≥25
	Y2 (1/2H)	80-110	245-345	≥8
	Y (Full Hard)	90-120	295-395	≥3
	T (Extra Hard)	≥110	≥350	–
